Intellinet Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100/1000Base-Tx to 1000Base-Lx (SC) Single-Mode, 20km, WDM (Rx1310/Tx1550) (Euro 2-pin plug)

Name: Intellinet Gigabit Ethernet WDM Bi-Directional 545075
Brand: INTELLINET
SKU: 273571
Price: 87.49 EUR
Availability: InStock

0% credit for 3 mon.

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

87.49 €

Delivery country: {{ userCountryName }}

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.06.2024

free

By express courier Please note that in case of a large parcel adittional delivery costs may apply!

10.06.2024

From 4.99 €

Parcel couriers

Unisend / DPD Paku skapis / Omniva / Circle K / Latvijas Pasts pakomāts / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

10.06.2024

From 1.49 €

Payment Methods

Bank transfer, Bank cards on-line, Apple Pay, 0% credit

Interest-free credit for 3 months

First payment:

0 €

Monthly payment:

29.16 €

Amount of payments:

87.49 €

or repay within 36 months from 2.43 €/mo.

Learn more about Klix Pay Later

Available for order: 2 pcs.

Warranty: 2 Years

Manufacturer: INTELLINET

Manufacturer code: 545075

Network Media Converters

Similar network media converters from INTELLINET

Show all products from INTELLINET

Together cheaper
Features
We recommend
Similar products
Reviews
Product Questions

You saving {{productBundleYouSave | formatAmount}}

Product information INTELLINET 545075

Main features

Maximum data transfer rate:

1000 Mbit/s

Ethernet LAN (RJ-45) ports:

Fiber ports quantity:

Maximum transfer distance:

20000 m

Weight:

0.17 kg

Ethernet interface type:

Gigabit Ethernet

Ethernet LAN data rates:

1000, 100, 10

Fiber optic connector:

Product colour:

Black

All features

Network

Ethernet interface type:

Gigabit Ethernet

Maximum data transfer rate:

1000 Mbit/s

Ethernet LAN data rates:

1000, 100, 10

Networking standards:

IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Auto MDI/MDI-X:

Yes

Fiber ethernet cabling technology:

1000BASE-LX

Cable types supported:

Cat5, Fiber

Duplex system:

Full

Converter input interface:

1000Base-TX, 1000Base-T, 100Base-TX, 10Base-T

Converter output interface:

1000Base-LX

Ports & interfaces

Ethernet LAN (RJ-45) ports:

Fiber ports quantity:

Fiber optic connector:

Connectivity technology:

Wired

DC-in jack:

Yes

Performance

Maximum transfer distance:

20000 m

Mean time between failures (MTBF):

100000 h

Wavelength:

1550 nm

Sensitivity:

-22 dBmW

Fiber mode structure:

Single-mode

Fiber cable diameters supported (core/cladding):

8.3/125, 8.7/125, 8/125, 10/125

Tx power (max):

-3 dBmW

Tx power (min):

-8 dBmW

Wavelength-division multiplexing (WDM):

Yes

Design

Internal:

Certification:

FCC Class A, CE

LED indicators:

Status

Product colour:

Black

Housing material:

Metal

Weight & dimensions

Weight:

0.17 kg

Height:

25 mm

Width:

69 mm

Depth:

105 mm

Power

Input voltage:

External power adapter:

Yes

Input current:

1.2

Power consumption (max):

5 W

Operational conditions

Operating relative humidity (H-H):

10 - 80

Storage temperature (T-T):

-20 - 70

Operating temperature (T-T):

0 - 50

Packaging content

Manual:

Yes

Logistics data

Harmonized System (HS) code:

85176990

Description

Machine translation. Load original

Description

Advantages

- Fibre SC-type dual-wavelength single-mode port connects over distances of up to 20 km (12.4 miles)
- Must be used with Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter, model 545068
- Data transfer rate: 10/100/1000 Mbps
- WDM (wavelength division multiplexing) technology utilizes only one strand of fibre to transmit data on separate receive and transmit wavelengths
- Wavelengths: receive (RX), 1310 nm; transmit (TX), 1550 nm
- One 10/100/1000Base-TX RJ45 port, maximum distance 100 m / 300 ft.
- RJ45 port with Auto MDI/MDI-X support

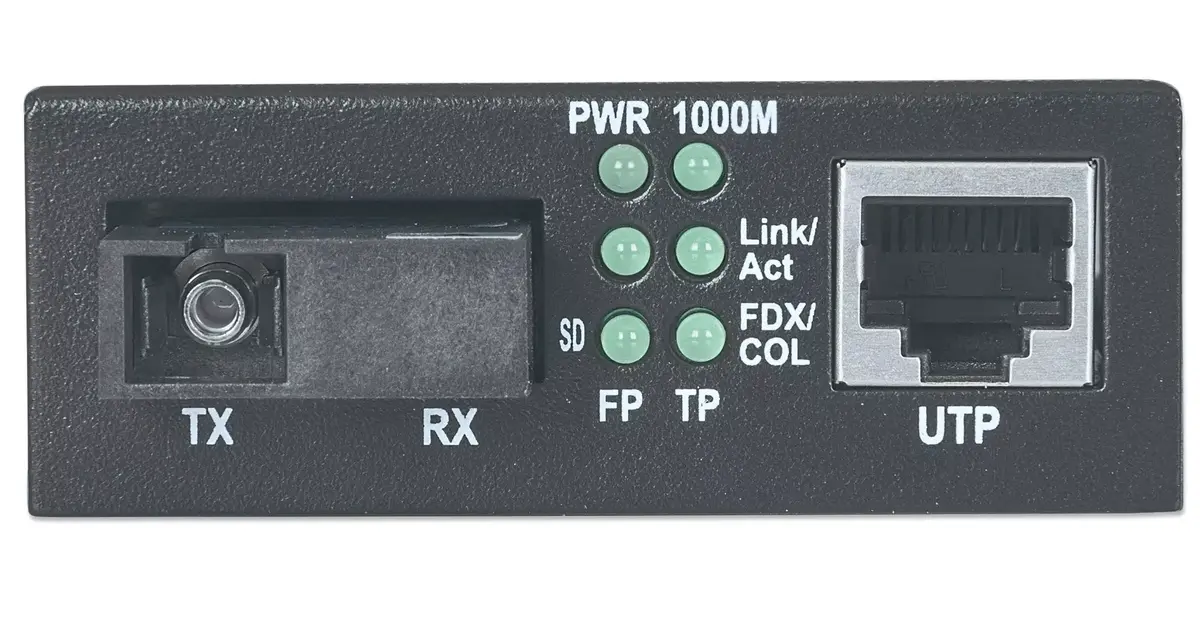

- Status LEDs for easy monitoring of device status
- Functions as a stand-alone converter or can be used with the 14-slot Media Converter Chassis, model 507356

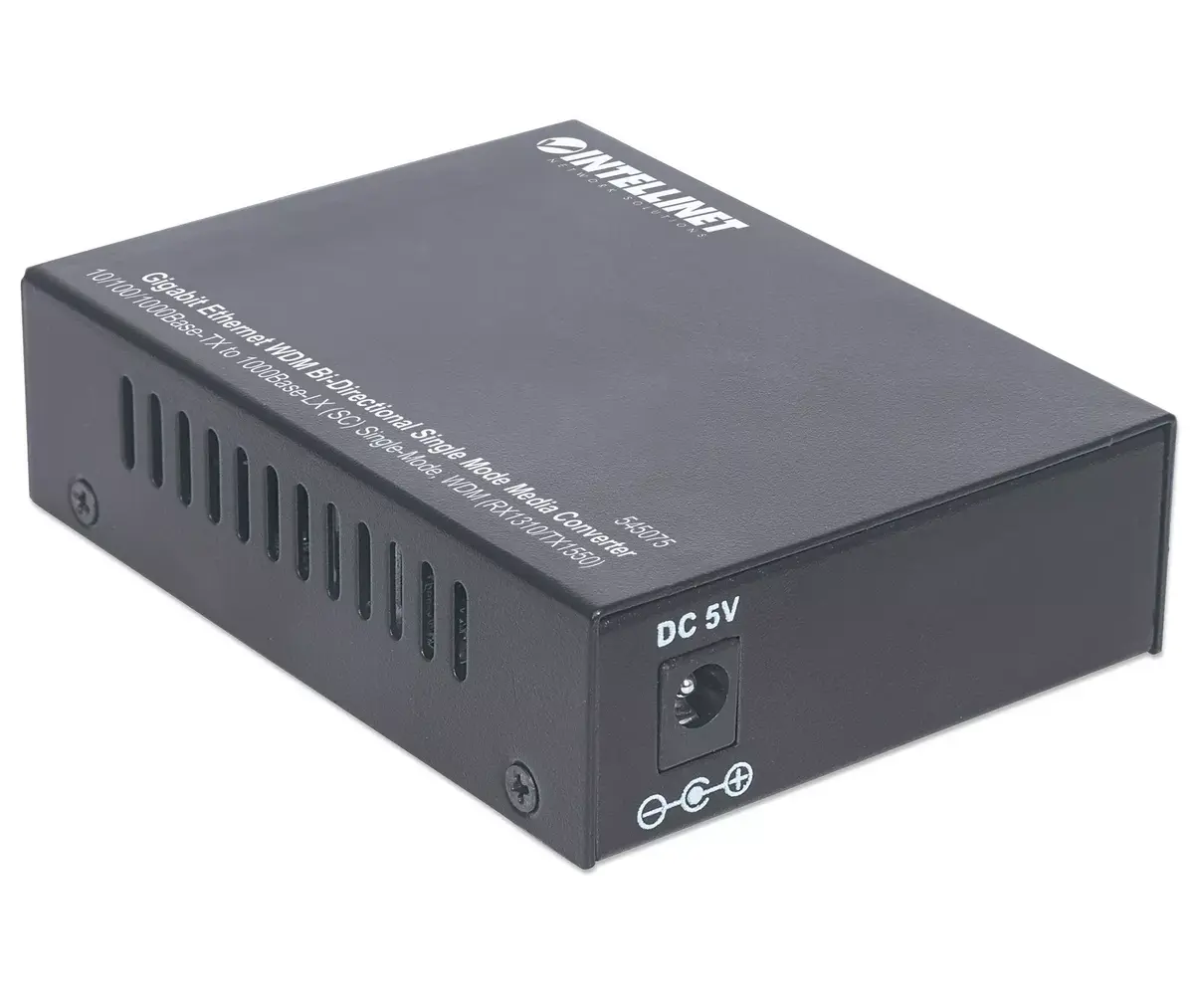

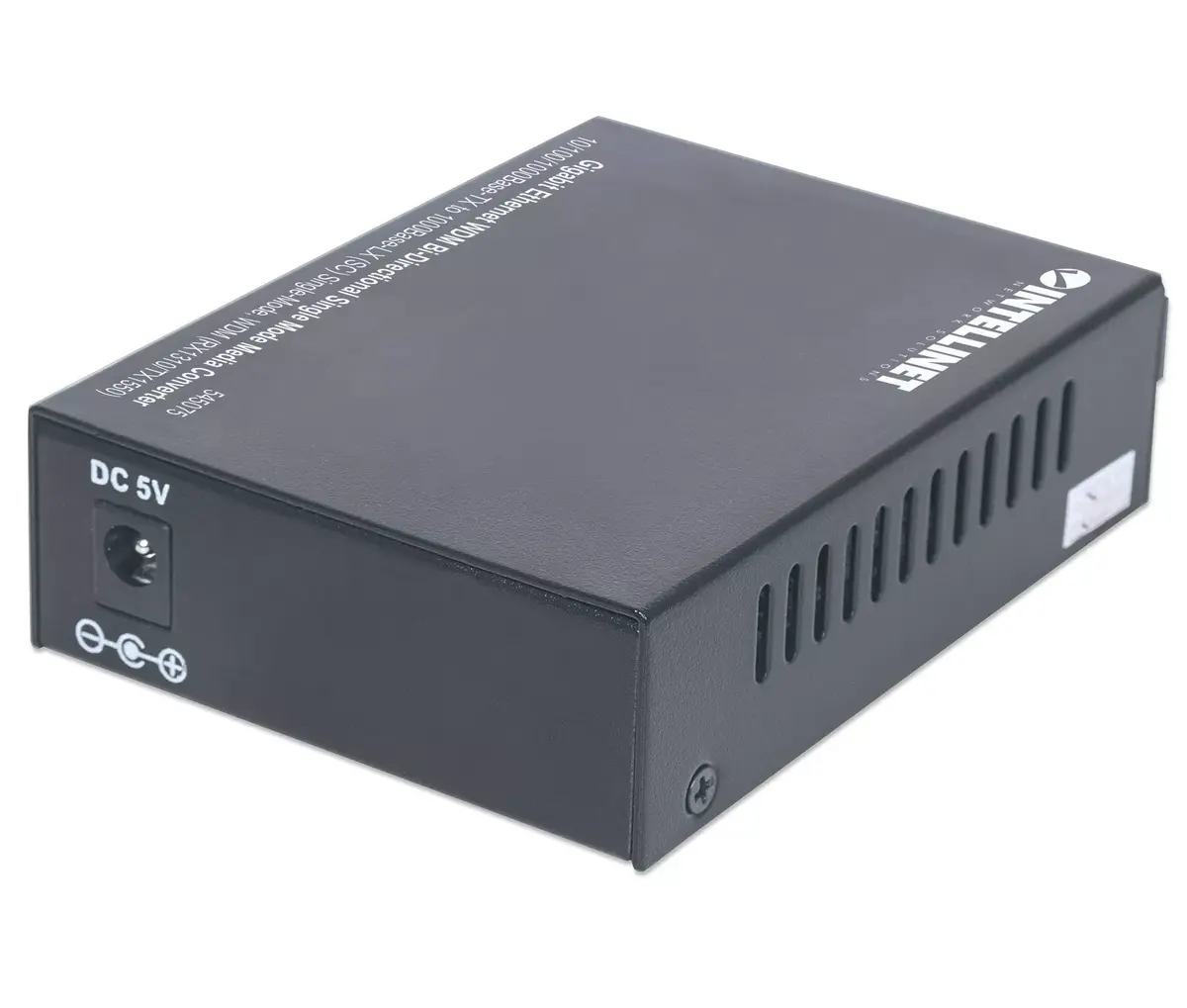

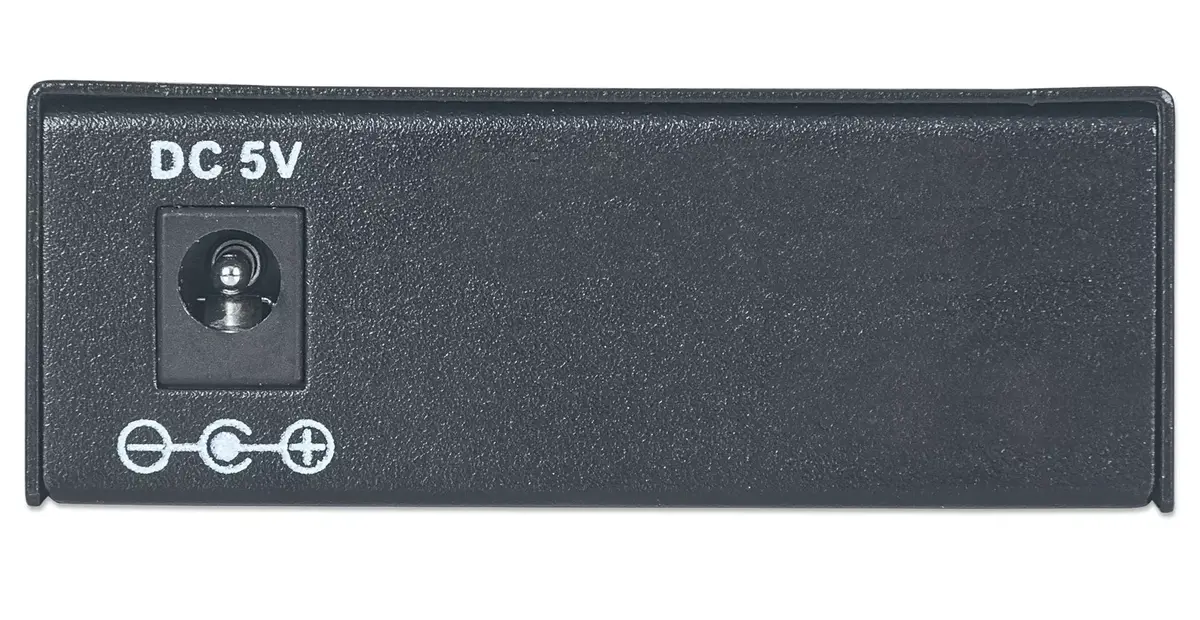

- External power adapter, 5 VDC
- Three-Year Warranty

Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100/1000Base-Tx to 1000Base-Lx (SC) Single-Mode, 20km, WDM (Rx1310/Tx1550) (Euro 2-pin plug)

The Intellinet Network Solutions Gigabit Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without digging in a second fibre cable. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.

Expands the Size of an Existing Network
This converter Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with the installation of additional routers.

Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.

Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wallmount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

Advantages

- Fibre SC-type dual-wavelength single-mode port connects over distances of up to 20 km (12.4 miles)
- Must be used with Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter, model 545068
- Data transfer rate: 10/100/1000 Mbps
- WDM (wavelength division multiplexing) technology utilizes only one strand of fibre to transmit data on separate receive and transmit wavelengths
- Wavelengths: receive (RX), 1310 nm; transmit (TX), 1550 nm
- One 10/100/1000Base-TX RJ45 port, maximum dist

...
